Microgrid with wind and solar energy

The mini microgrid is a system with distributed energy resources, distributed energy storage, and local loads. The operation of the system is optimized by a software agent through advanced measurement and controls. Our training system can be operated in islanded or grid-tied modes. The system will facilitate the study and research in the energy management, measurement, and controls.

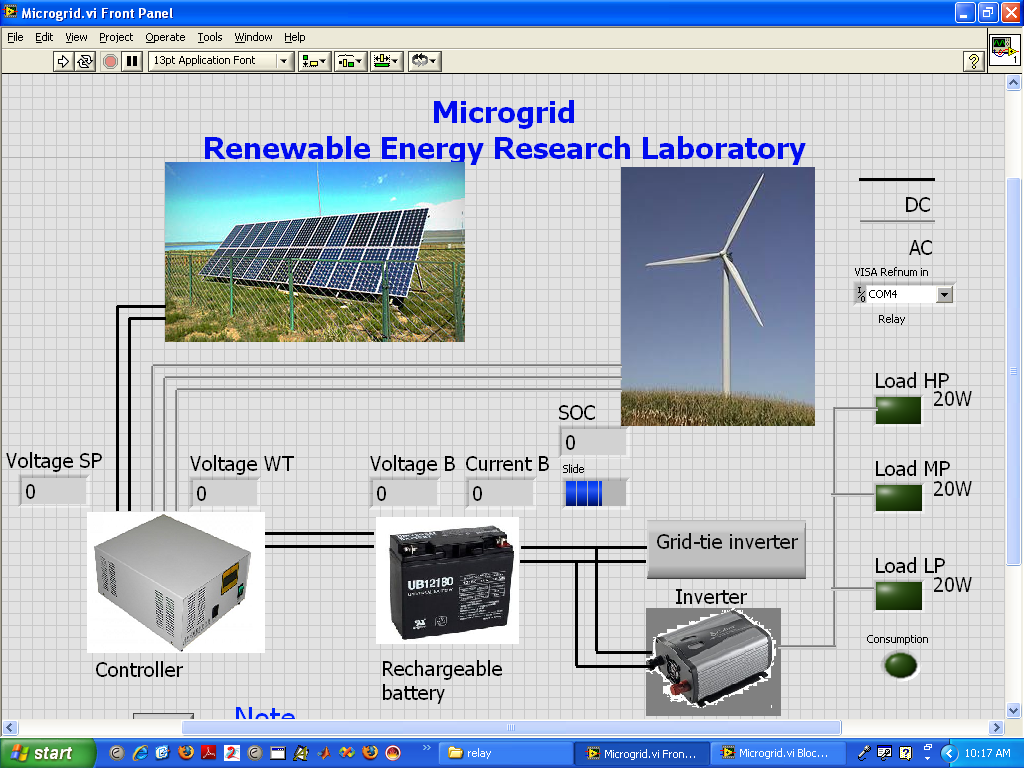

The front panel of the microgrid

List of equipment

PV system (1kW)

Wind turbine (1kW)

Lead acid rechargeable batteries

Charge controller

Inverter

Converter

Desktop computer

Optional equipment

LabVIEW software

References

1. Zhang, L., Gari, N., Hmurcik, L. V., Energy management in a microgrid with distributed energy resources. Energy Conversion and Management, 2014. 78: p. 297-305.

2. Zhang, L., Xiang, J., The performance of a grid-tied microgrid with hydrogen storage and a hydrogen fuel cell stack. Energy Conversion and Management, 2014. 87: p. 421-427.
