| Real-time PV module emulator
For a 30V(max) and 10A(max), the price is $1,500 We can develop an emulator based on your requirements, please Email: info@alliedsmartsys.com for a quote. This emulator supply power with the same characteristics as that from a real PV module. It is used for the development of PV-related power electronics and education in solar electricity.

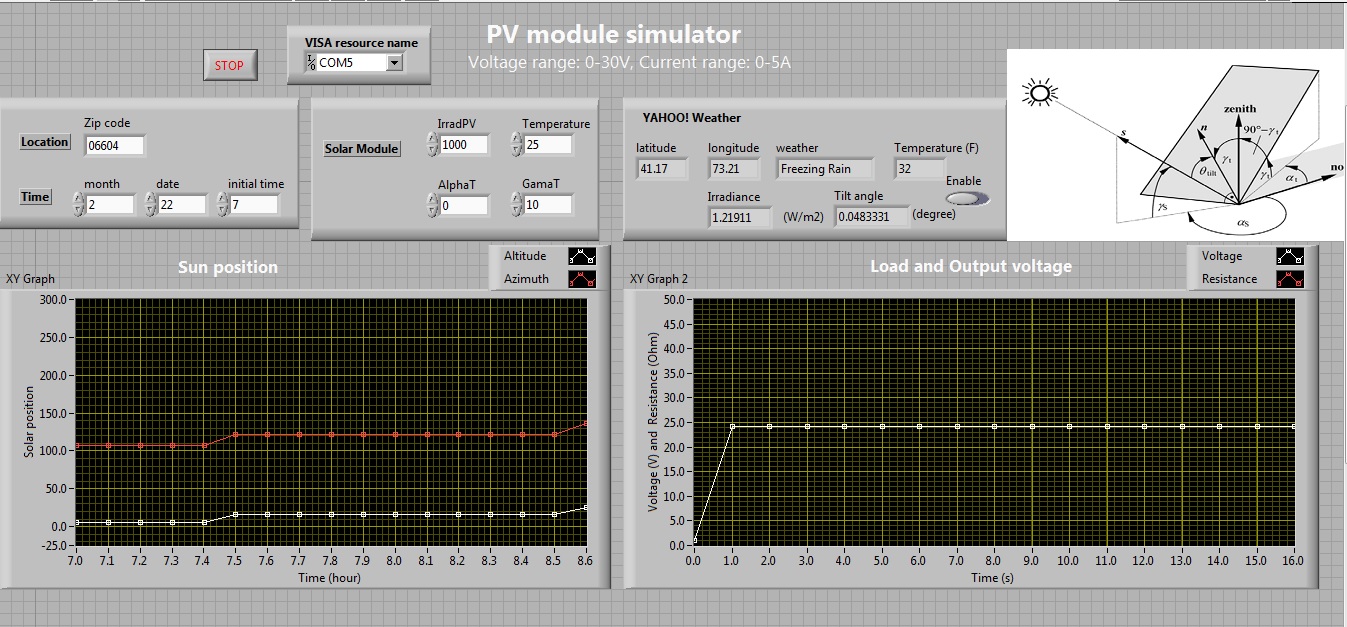

Our emulator is connected to a charge controller to charge battery and the operating point is shown on the front panel. The user interface of the simulator

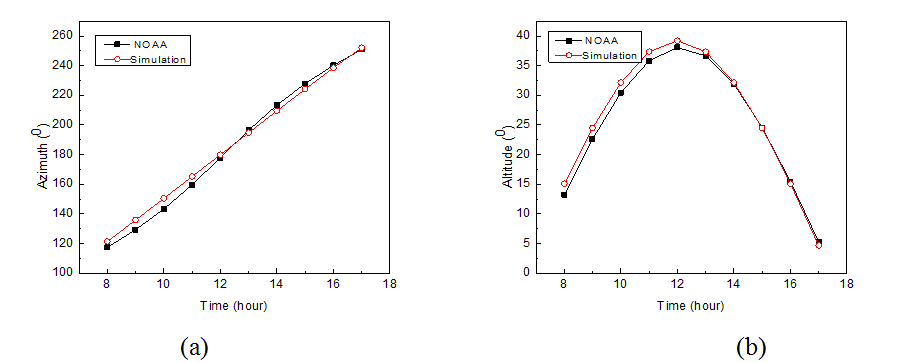

The comparison of the azimuth and solar height between the calculation and the data from NOAA (National Oceanic and Atmospheric Administration).

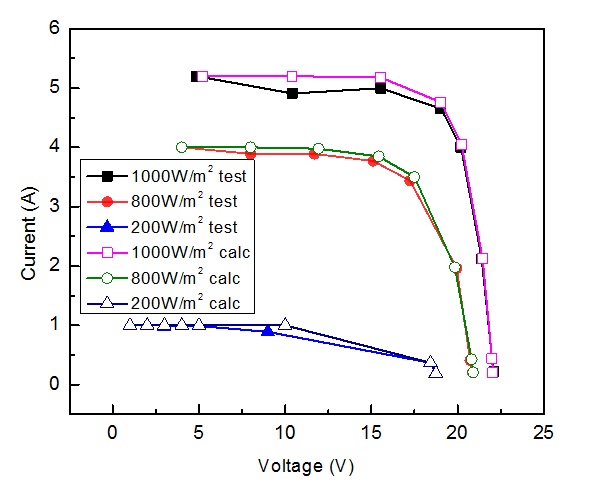

The IV curves of the power output under three solar irradiance levels

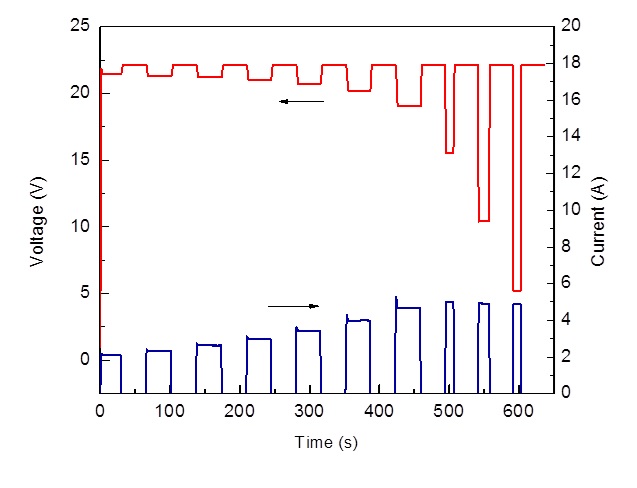

Dynamic response from the simulator
|
|
